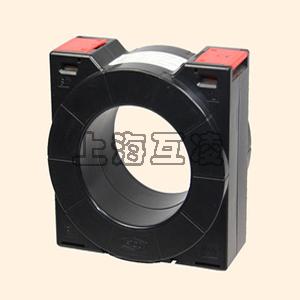

RLC-50电流互感器

  • RLC-50电流互感器

    • 名称:RLC-50电流互感器
    • 型号:RLC-50
    • 销售热线:021-31263351
    • QQ在线客服:919107474
    • 公司承诺:上海互特电气有限公司成立以来始终以用户需求为目标,以科技为先导,所提供的产品一直以一流的品质和优秀的售后服务而享。我们将为您提供优质的产品与服务。
产品描述

RLC-50电流互感器

DESCRIPTION

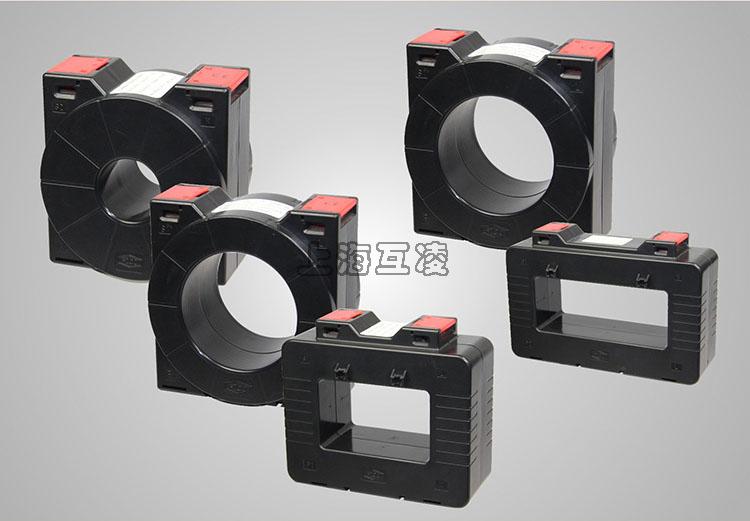

A new range of (5 Models) compact design plastic case current transformer. lt's volume is
much bigger than general model, integral hinged plate terminal cover, DIN rail mounting all
makes this series CT match the requirements in space limited panels.
RLC系列新型电流互感器共有5个规格,产品结构紧凑,体积比同电流比的其他款式互感器大,
翻盖式的端子很好的保护了二次接线端子。配有相关附件,可以用DIN导轨安装。

FEATURE
Three built in fixing methods: Panel/ Din Rail/Busbar
三种安装方式:底板/DIN导轨/汇流排
Built in hinged terminal cover
内置翻盖式端子
High Capacity; High Accuracy
高容量;高精度
Primary Current from 5A t0 5000A
额定一次电流从5A到5000A

Rated current Rated power(VA)
Class0.5 Class0.5s
100/5 2.5 5(2T)
150/5 3.75 5
200/5 5 5
250/5 5 5
300/5 5 5
400/5 5 5
500/5 5 5

SPECIFICATIONS

Rated Frequency(额定频率)
Rated Test Voltage(耐受电压)
Rated short-time thermal current(lth)(额定热电流)
Rated dynamic curren t (ldyn)(动稳定电流)
Rated voltaae (Um)(额定电压)
Contin uou s -ove rload (过载)
Operating temperature(工作温度范围)
Housing self-extinguishing class(外壳阻燃等级)
Safety factor(准确限制系数)
Secondary current(二次电流)
50/60Hz
3kv AC.(1min)
6oln
2.5lth
0.72Kv AC.
1.2ln
-10℃~50℃
VO
FS5
5A/1A



STANDARD
IEC60044-1 GB1208-2006


产品名称:RLC-50电流互感器

型号:RLC-50

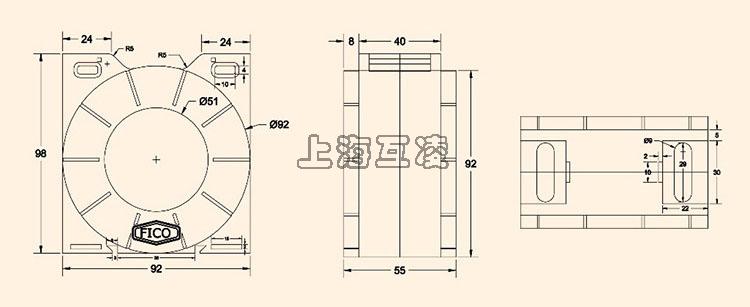

声明:本页RLC-50电流互感器的接线图、外形尺寸及文字等信息仅供参考用,如有改动不另行通知。订购前请来电咨询,我们有专业人士为您选型。 另外可根据客户要求,订制非标产品,欢迎来电订购,电话021-31263351。
