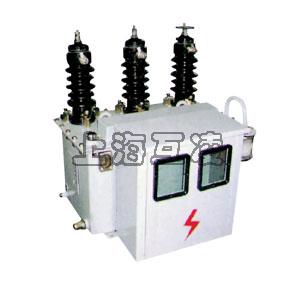

JLS-10高压计量箱

交货周期：2个工作日

Delivery Detail: 2DAYS

简介Description

本产品由组合互感器和计量仪表箱组成，组合互感器由两台电压互感器和两台电流互感器组装在一起而成。计量仪表箱内配有D86系列三相电度表和保险装置，单向计量时配一块有功电度表和一块无功电度表，双向计量时配二块有功电度表和两块无功电度表。

 The combined transformer (another name is metering tank) is one kind of outdoor power measuring device, which is composed of two sets single-phase wholly insulated voltage transformers, forming three-phase V/V wiring, and two current transformers are separately series connected to A and C phase. The 10kv CT PT combined units is one upgraded product based on old product of same kind, just adding moisture-proof device onto oil tank's cover, which could effectively prevent external humidity from entering into oil, so as to prolong service life of product, while, compared with old product, its advantage contains larger capacity, smaller volume and weight, simplifying installing.

JLS-6、10型三相油浸式户外高压电力计量箱（以下简称计量箱）定电压为10kV，额定频率为50-60Hz的三相交流网路上作电能计量用，由组合互感器和电表箱两部分组成。

This product is applied to certain outdoor circuit of AC50-60Hz, rated volt being 10kV or lower, to be used for metering of current, voltage and electric energy etc. this product is suitable for rural outdoor transformer substation, miniature transformer station and substation of industrial enterprise etc. Adding active and reactive energy meter onto combined transformer is named as high volt power metering tank.

产品名称：JLS-10高压计量箱

型号：JLS-10
